Name: Zoom75 EE
Brand: Meletrix
Price: 219.0 EUR
Availability: OutOfStock

Looking for switch and keycaps? Take a look here!

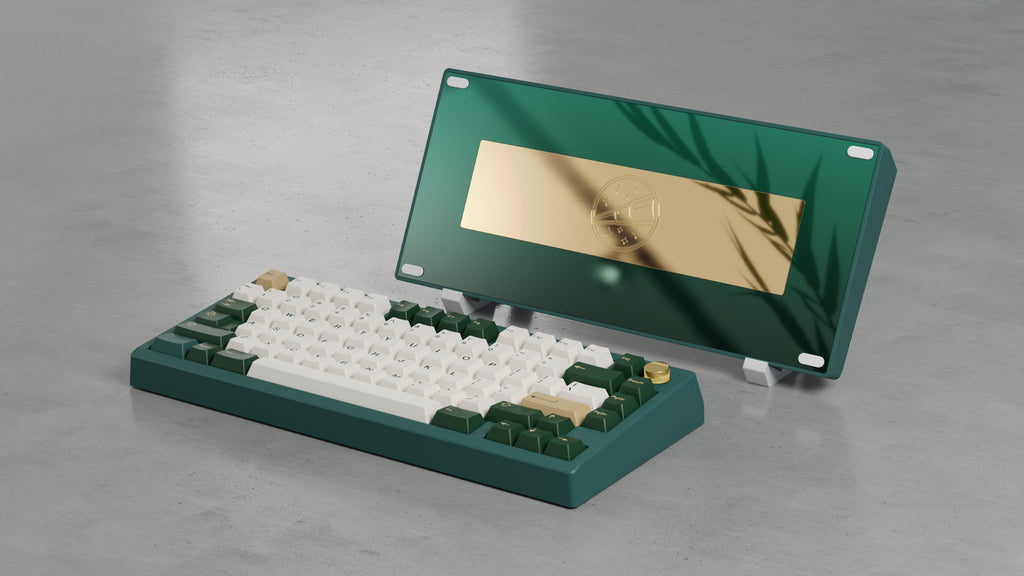

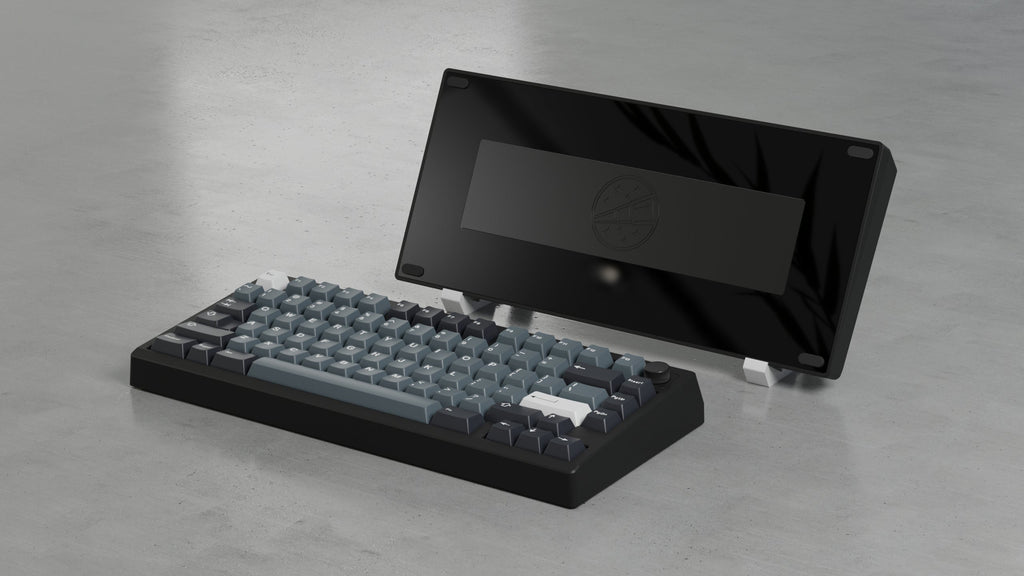

We are happy to introduce you the Zoom75 Essential Edition!
There Zoom75 Essential Edition has been enriched with 4 new case colors and other important innovations:

The upper casing extends further to achieve a seamless side profile.
PCB supplied with a daughterboard

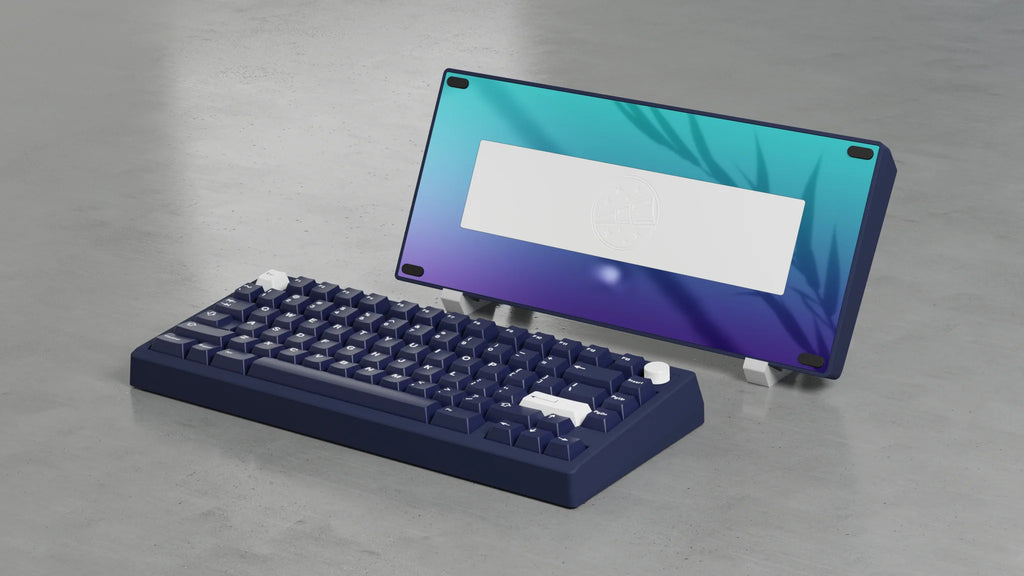

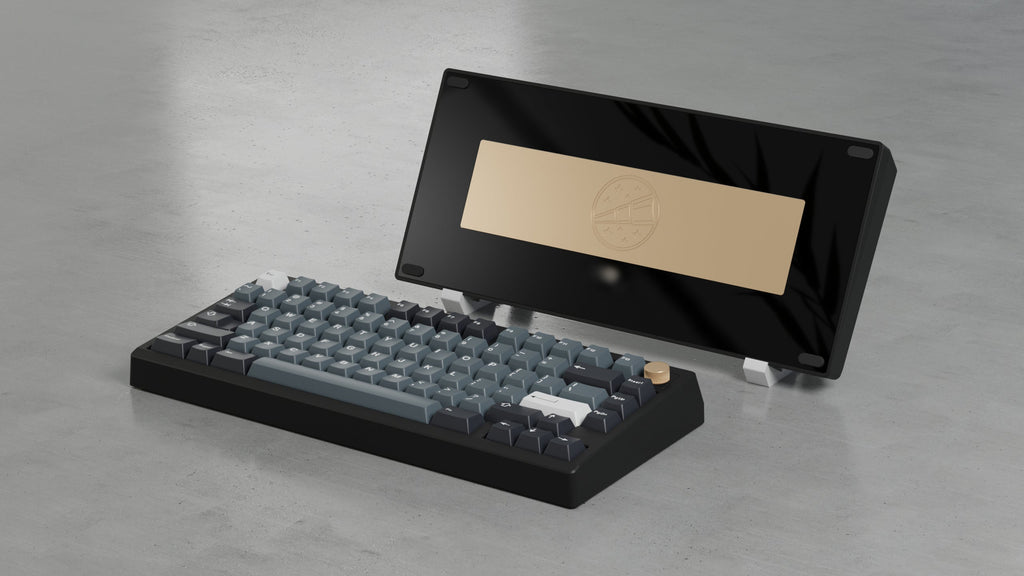

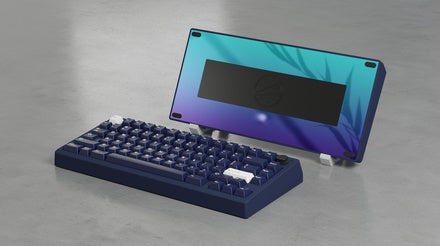

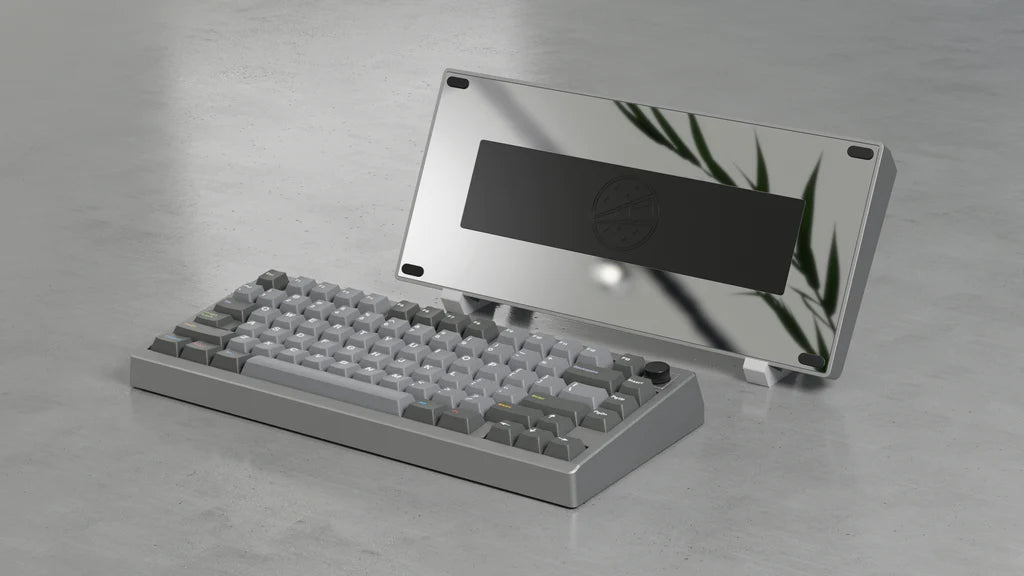

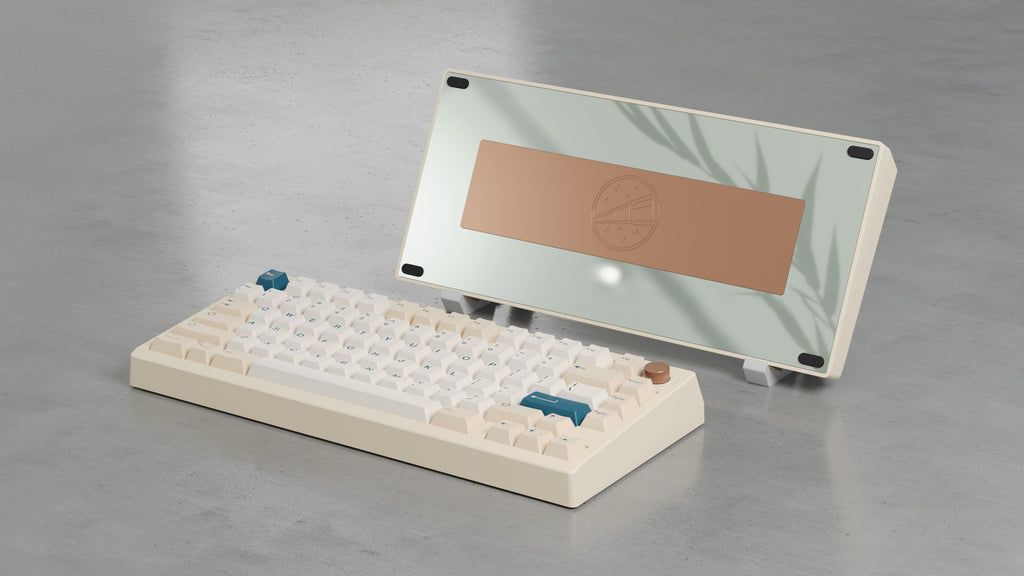

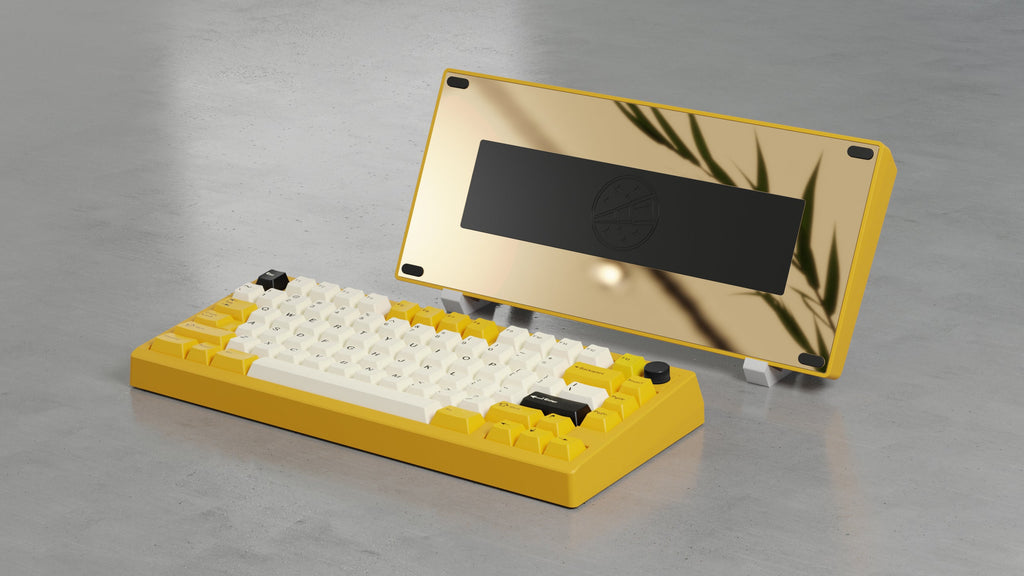

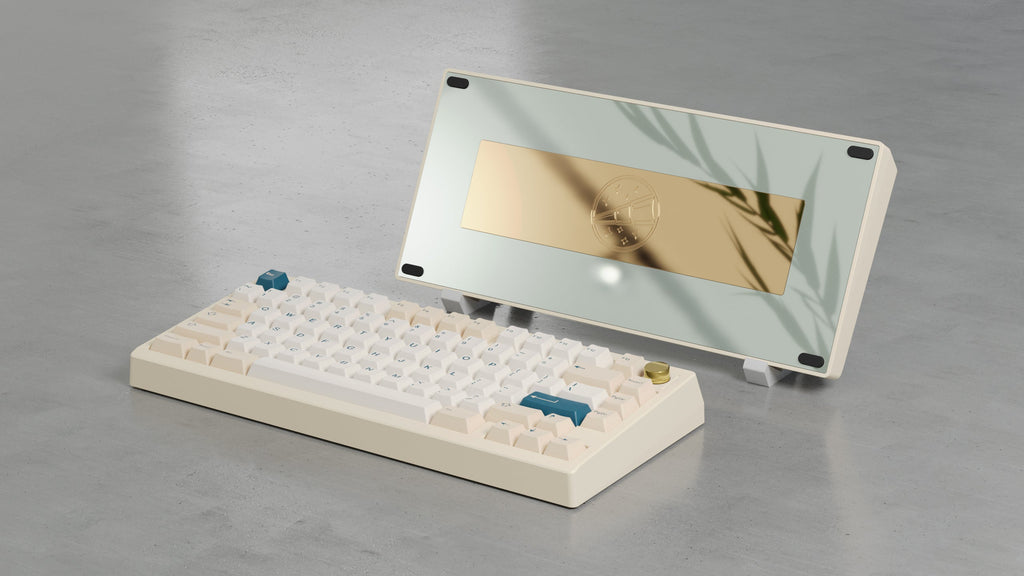

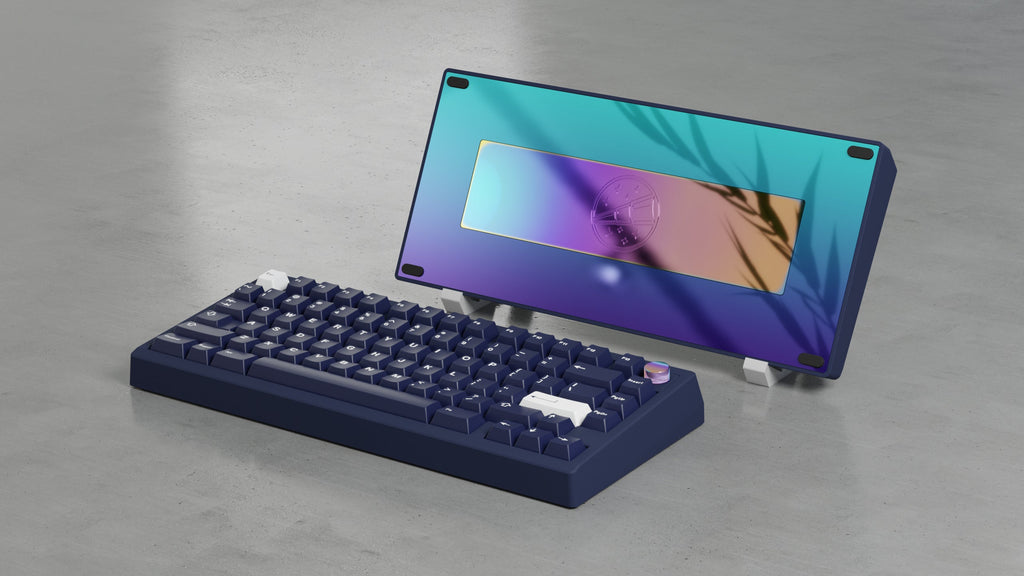

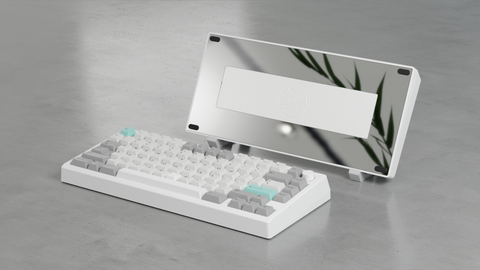

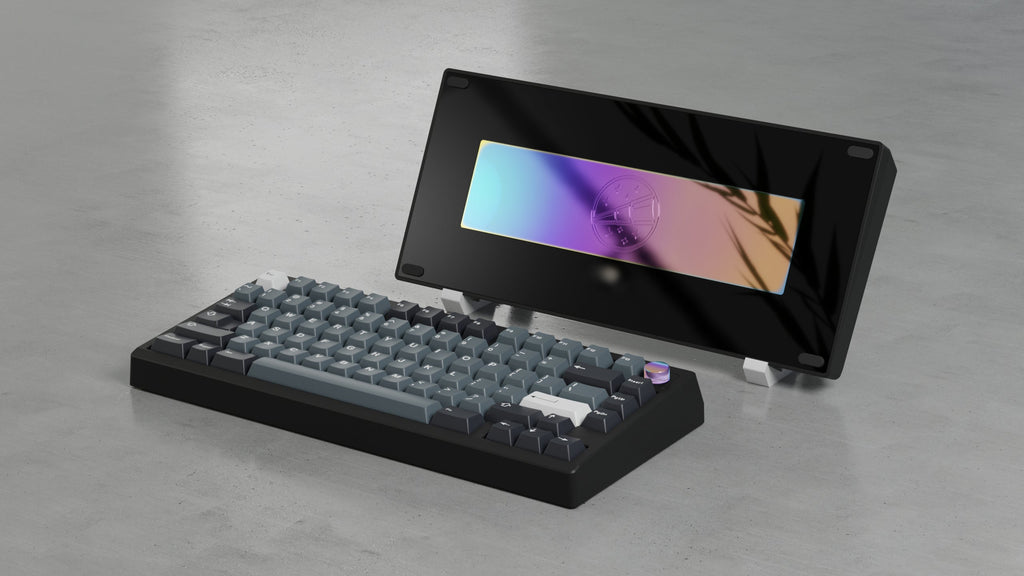

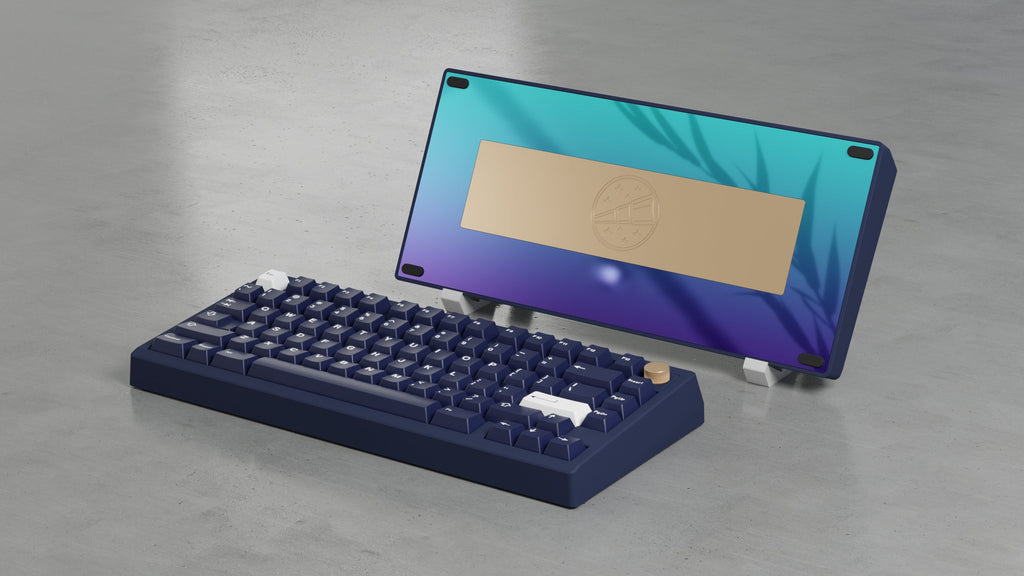

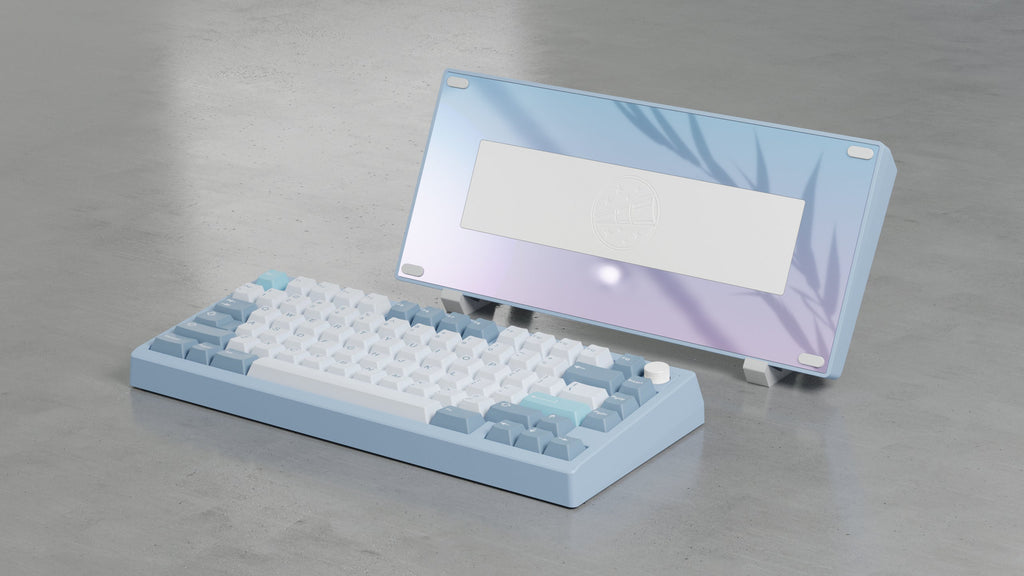

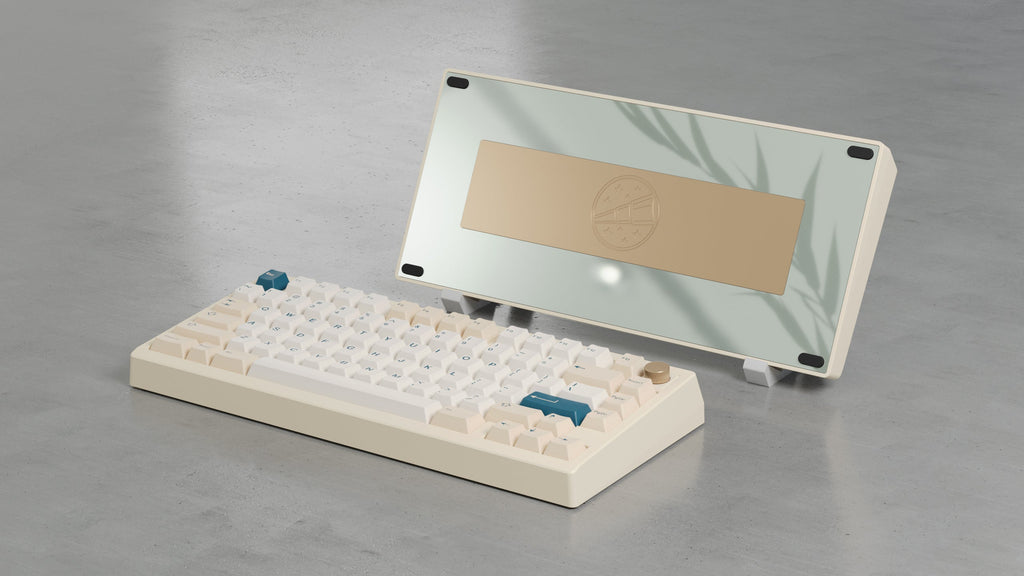

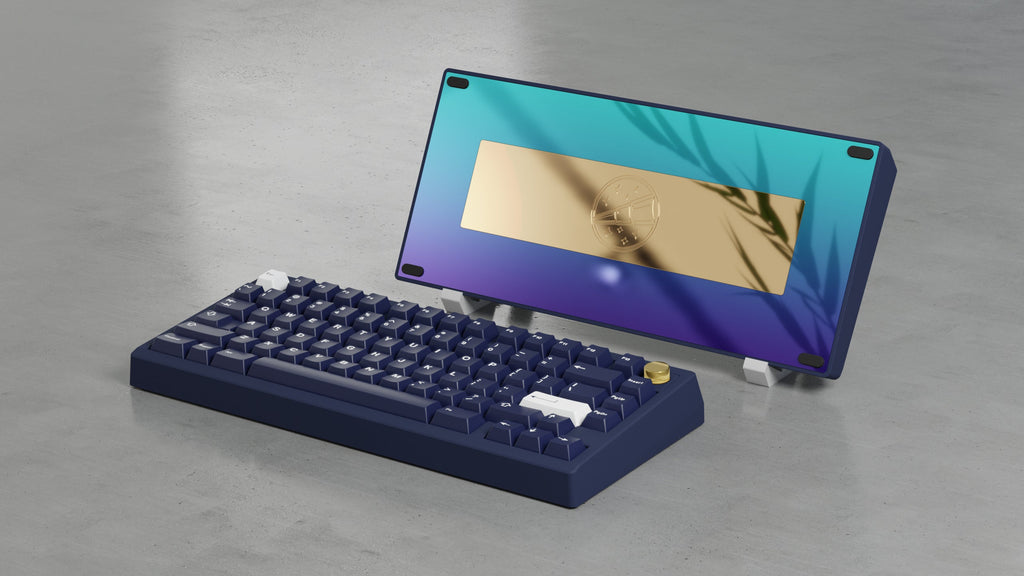

Glass backplate on the bottom

Description

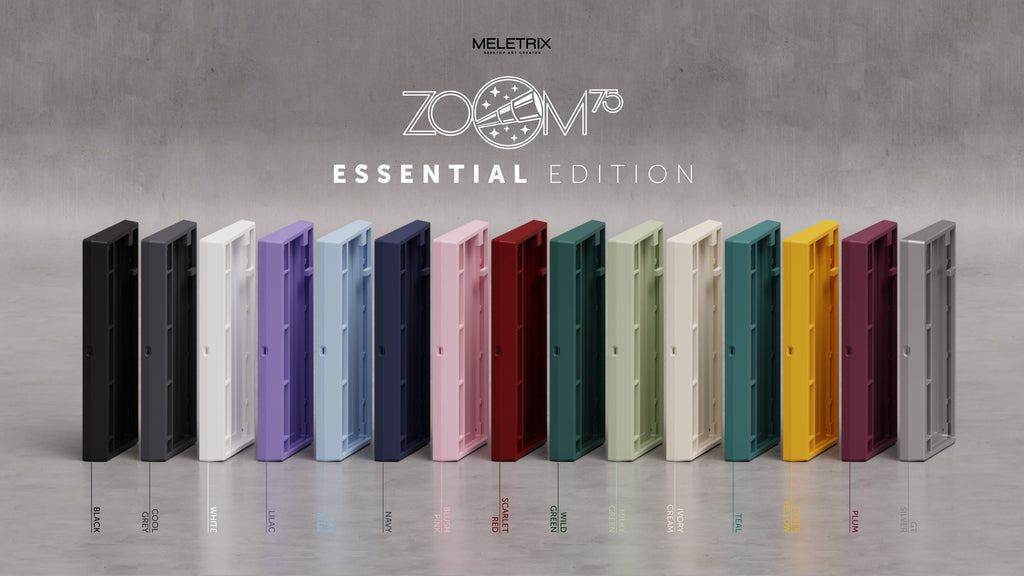

More than 100 color varieties
15 case colors, 11 knob combinations and extra weights to meet your needs.

Tri-Mode RGB
Zoom75 tri-mode PCB with RGB lights offers a variety of lighting effects for a great visual experience. The RGB lights support wired, Bluetooth and 2.4G modes, allowing you to use them anytime, anywhere.

Multi Layout
ANSI, ISO, split spacebars, stepped caps lock, shift right, backspace

Want The Whole Place Visible?

Battery included
Each Zoom75 Essential Edition comes with a 2250mAh Li-ion battery included in the kit. The battery should last 6-8 weeks between charges under normal use. Once the charge is depleted, simply connect the keyboard to your PC/laptop using the included USB-C cable.

Internal weight
To take the keyboard to the next level, you can use an internal steel weight, sold separately here. The weight is about 358 grams and gives a more pleasant and solid sound than the absence of an internal weight.

2U modular right top
The Zoom75's swappable module design opens up more gaming possibilities with a 2U space at the top right for the color LCD, knob, two buttons, and badge. One keyboard for 4 different experiences, split-module design makes editing easier and frees up more space for customization.

WS Stabilizer V3
The new stabilizers have been in development for almost a year and will be included in the Zoom75. They use a soft TPU around the threads for better performance even with minimal lubrication.

Specifications and kit contents

Gasket mount design
75% Layout
PCB: 1.2mm, con Ai03 DB
Typing angle: 5°
Front height: 22.14mm
Dimensions: 323.6 x 145.78 x 34.73 (mm)
Finitura: electrostatic coated, anodized, E-white, nano coated（GT Silver only)
Default plate: PC
Zoom75 Bluetooth PCB polling rate: 125hz
Zoom 75 2.4GHz Polling Rate: 1000hz
Zoom 75 Wired Polling Rate: 1000hz
Bluetooth PCB can be used wirelessly and wired.
Tri-mode PCB support VIA. Wired PCB support QMK, not VIA.
Essential kit con Alu knob / weight / Glass Mirror Back Plate: 1.74 kg
Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 2.03kg
Essential kit with Alu knob / weight /PVD Back Plate: 1.87 kg
Essential kit with brass knob / PVD SS weight / PVD Back Plate: 2.15 kg
Internal weight: 0.358 kg

Kit contents

Choice of Aluminum Top & Bottom Case
External weight in aluminium/SS of your choice
Rotary Knob in aluminium/brass in combination with the external weight
Backplate of the same color as the case
Knob Module Kit (same color as case)
Tri-mode Flex Cut Or Non-Flex Cut Hotswap RGB PCB (Hot-swap, multi-layout Bluetooth /VIA PCB with per-key RGB)
Cavo Daughterboard/JST
Flexible Flat Cable (2 pezzi)
Polycarbonate plate
Gasket Sleeves
Set of WS Stabilizers V3 (gli stabilizers of mass production may be different from prototypes）
Lithium battery (2 pieces) （2250mAh）
Cavo Coiled USB-C
Poron Dampener kit
Silicone keyboard feet
Screws and other installation tools/accessories
2.4G USB Receiver
Storage case
