[Pre-Order] MKC75 KIT - WIRED VERSION CASE (ALUMINIUM WEIGHT)

[Pre-Order] MKC75 KIT - WIRED VERSION CASE (ALUMINIUM WEIGHT)

€102,00
€102,00
Sale Sold out

Out of stock

OTHER OPTIONAL EXTRAS:

Accessories/ Brass PVD Rotary Knob and LED Light Sign

Please add to cart with your keyboard, we don't combine any GB orders.

MKC75 SPECIFICATIONS

  • Typing angle: 7°
  • Front height: 18.5 mm
  • Material: Full CNC 6063 aluminum
  • Dimension: 320*134.4*33mm
  • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
  • QMK/VIA Supported（wired）
  • Support PCB stabilizers
  • Unbuilt Weight:
    • With PVD WEIGHT: 1.693kg
    • With Alu WEIGHT: 1.425kg
  • Built Weight:
    • With PVD WEIGHT: 1.86kg
    • With Alu WEIGHT: 1.592kg

      WHAT YOU CAN CUSTOMIZE FOR MKC75?


      CASE COLORS OPTIONS:

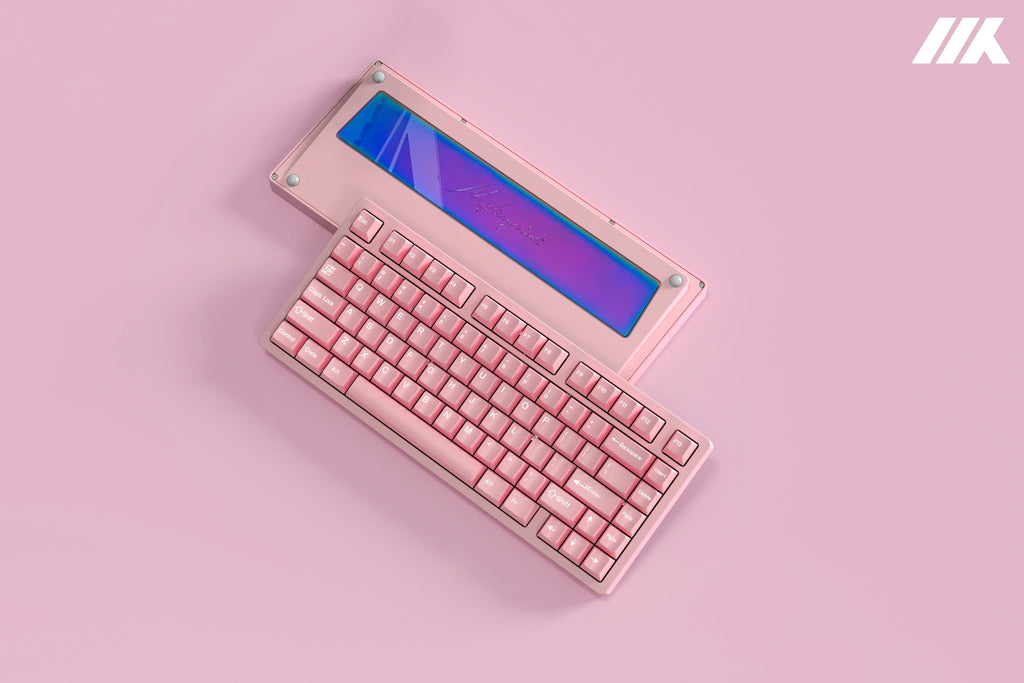

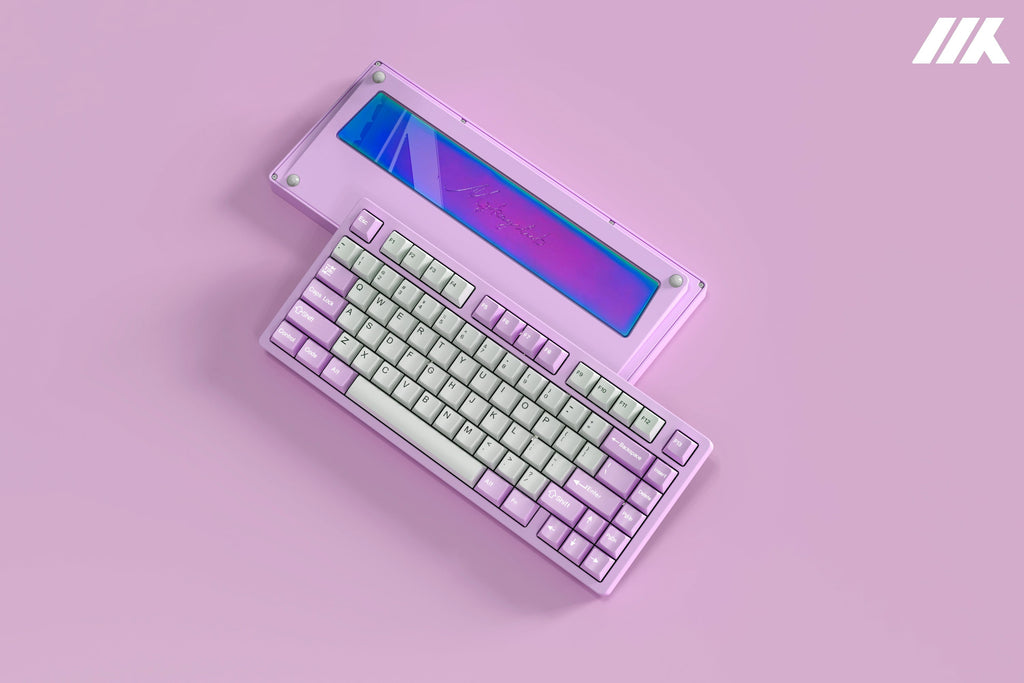

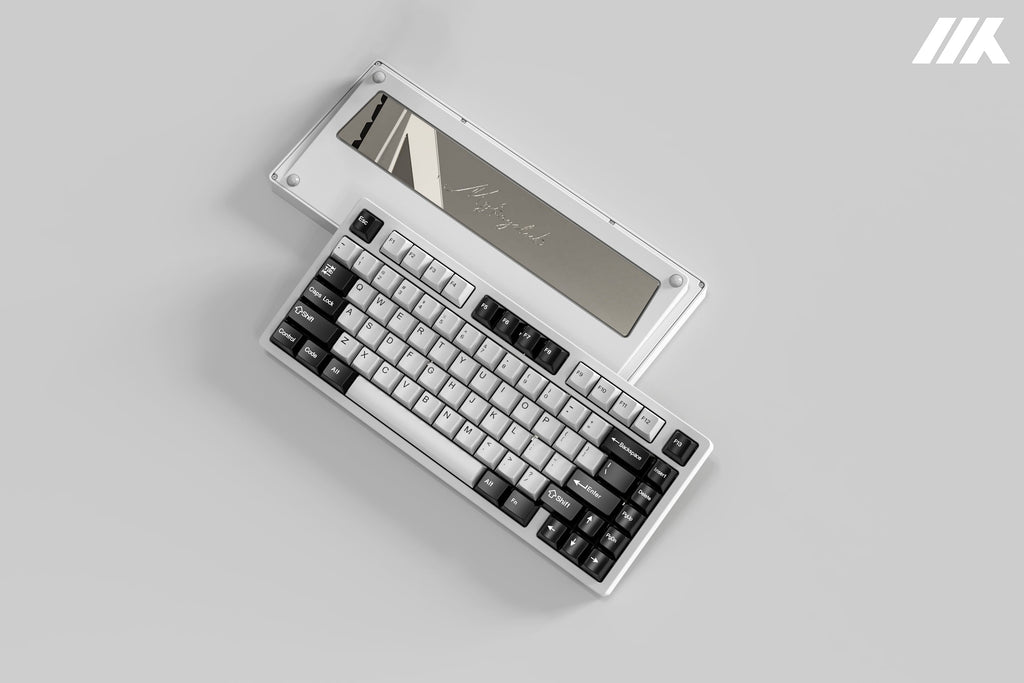

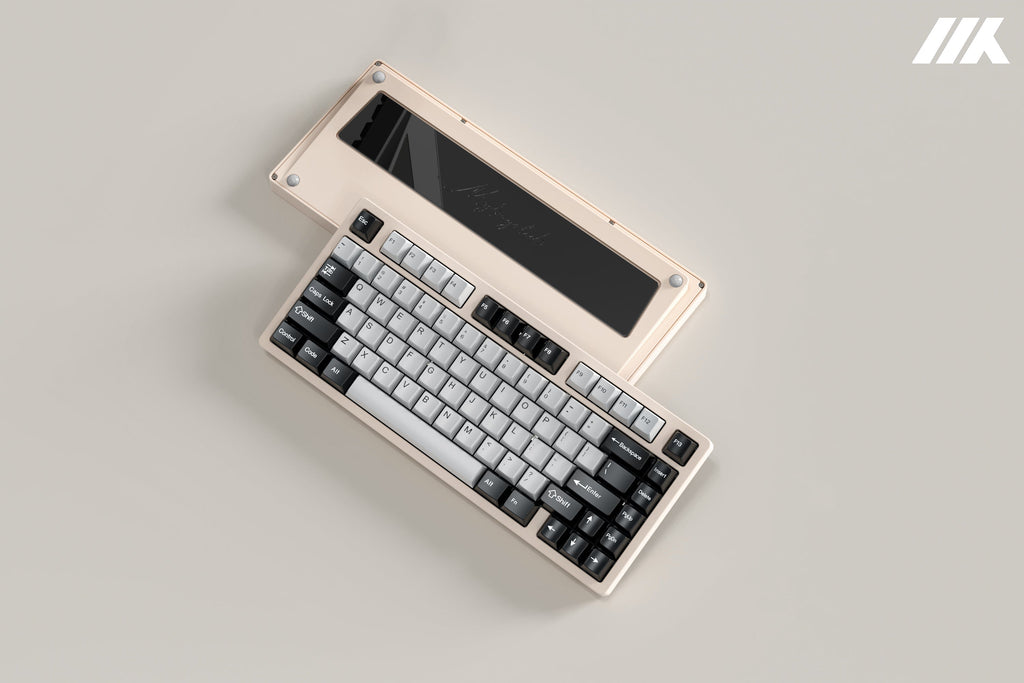

      • 4 E-coat Case: E-white, Milky White, Pink, Lilac

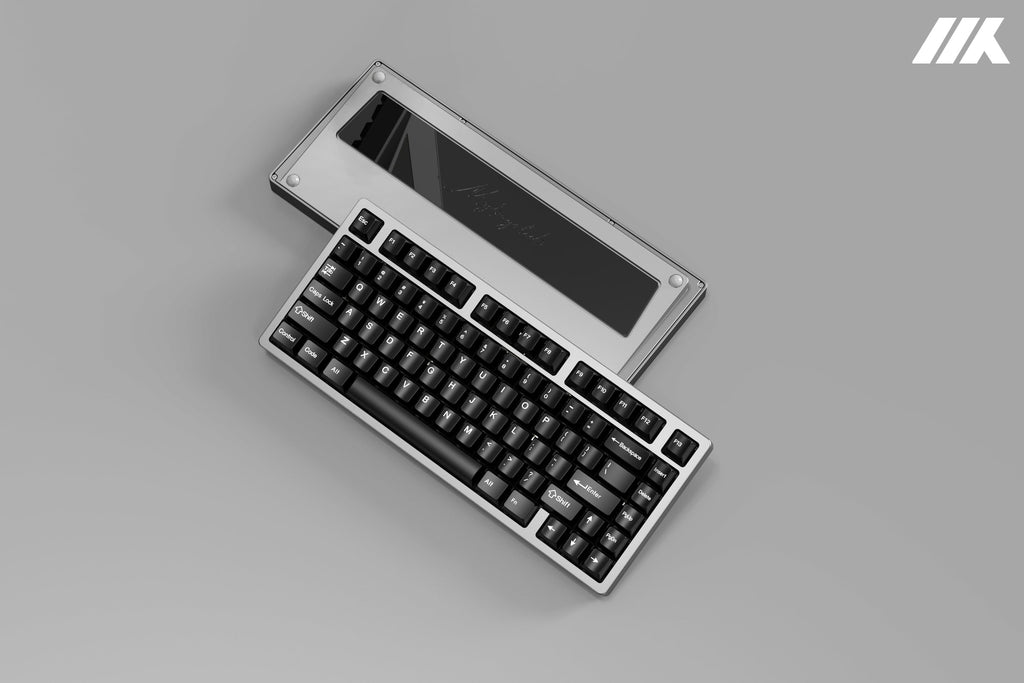

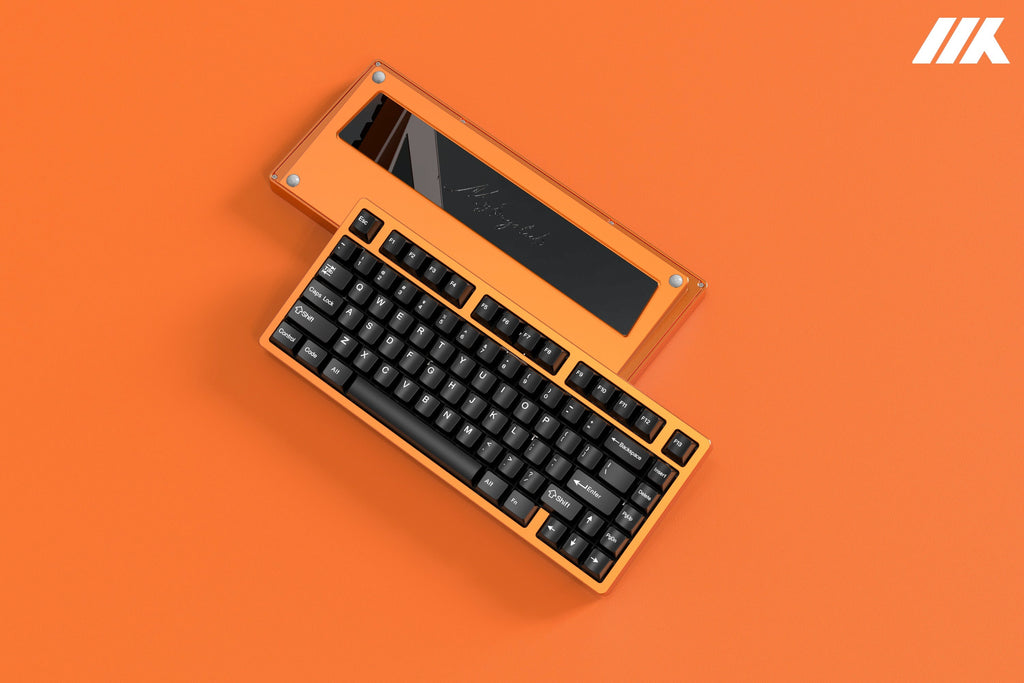

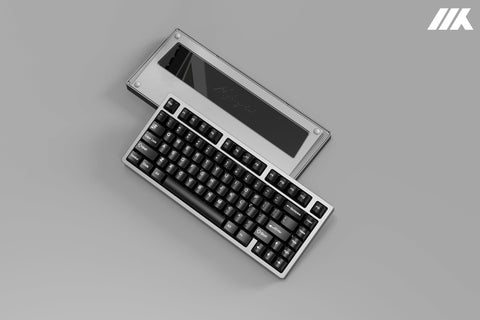

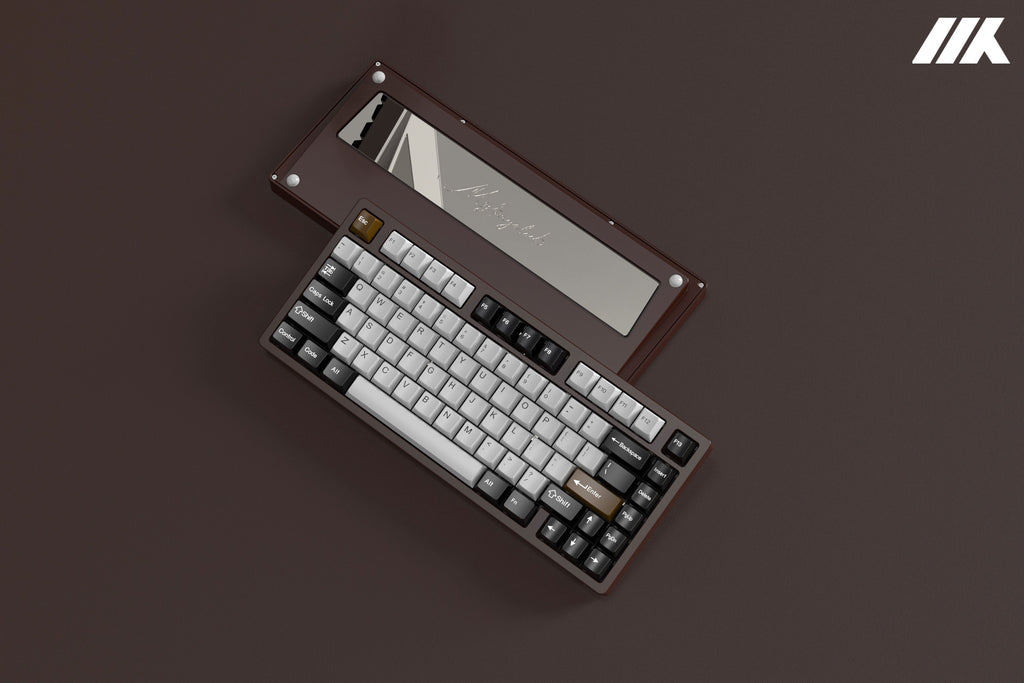

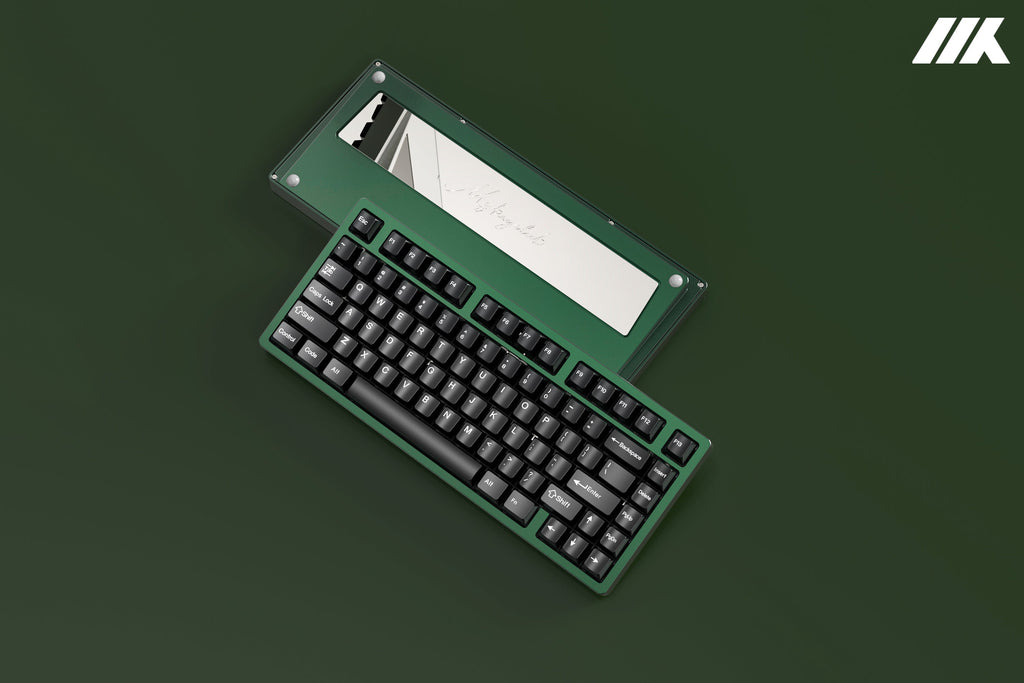

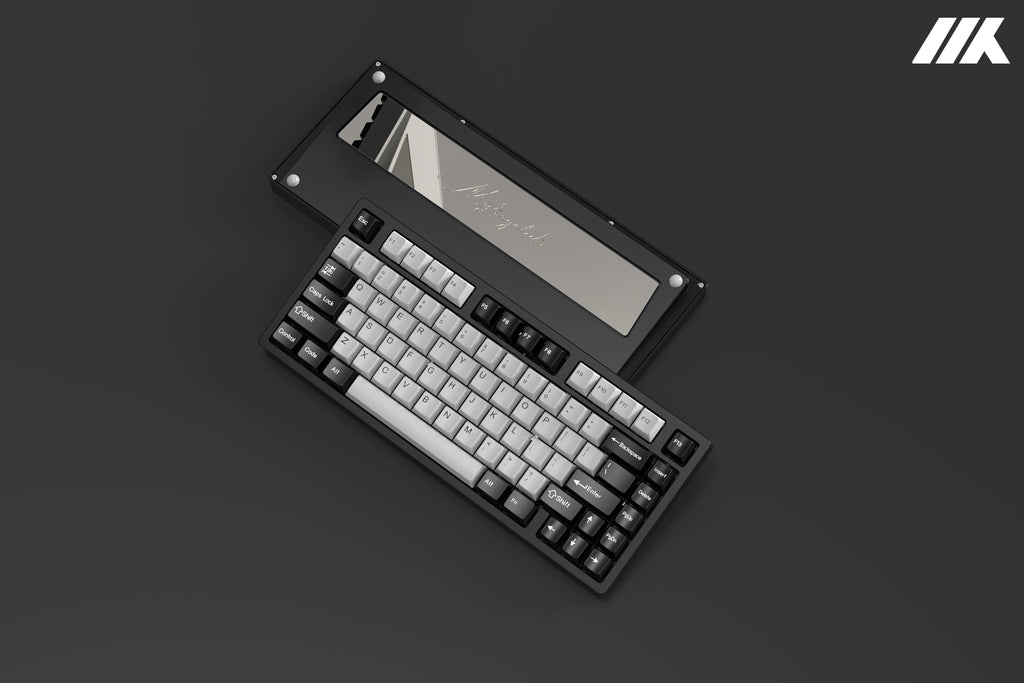

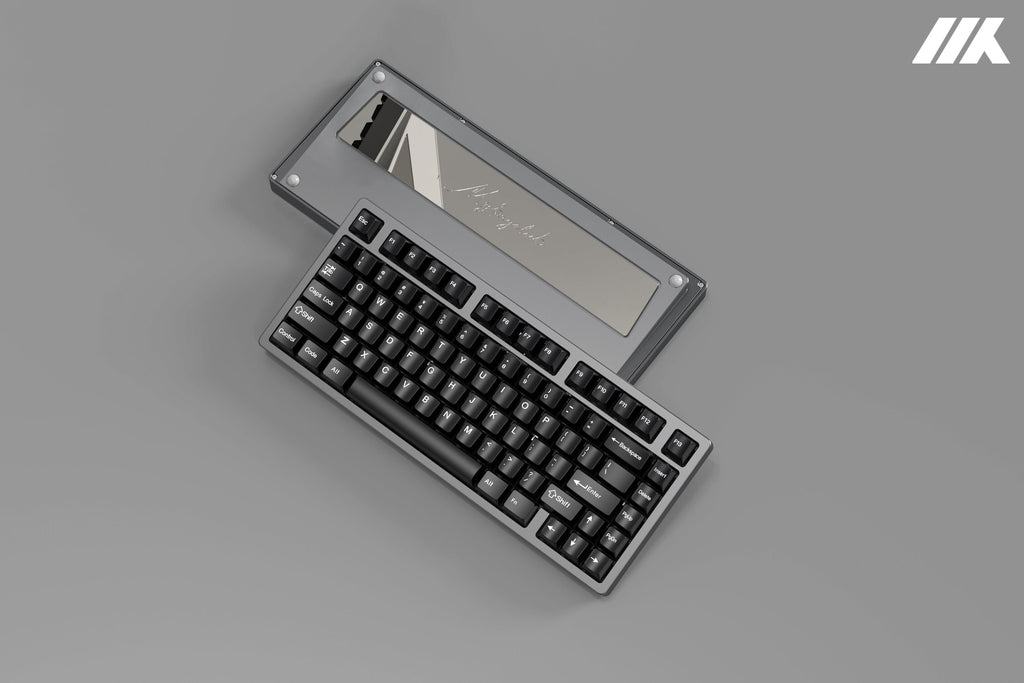

      • 6 Anodized Case: Orange, Black, Brown, Grey, Silver, Green

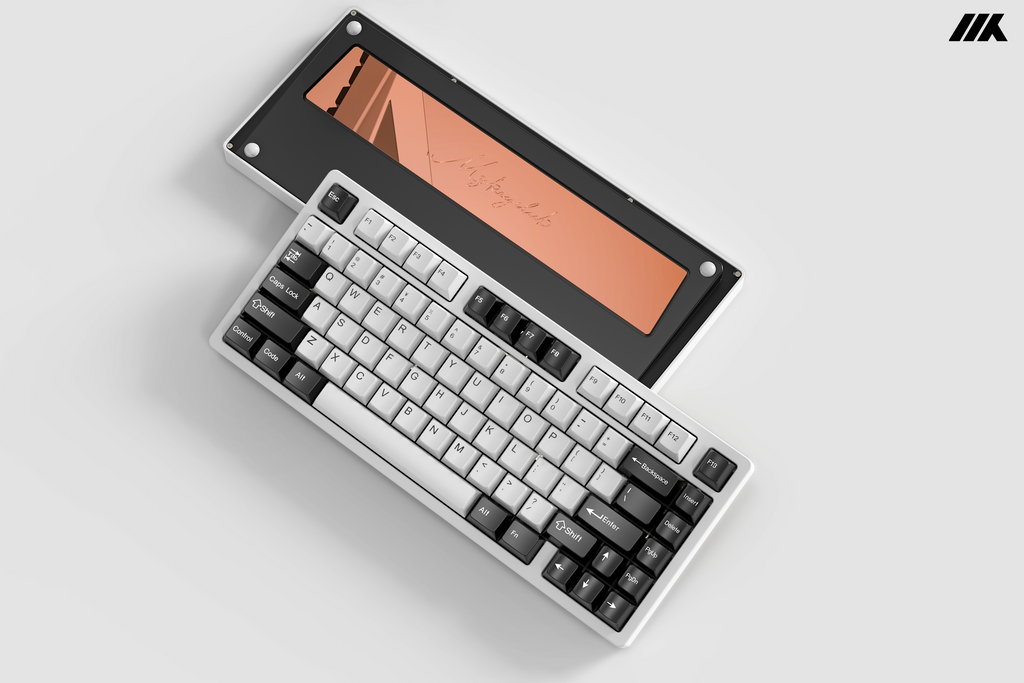

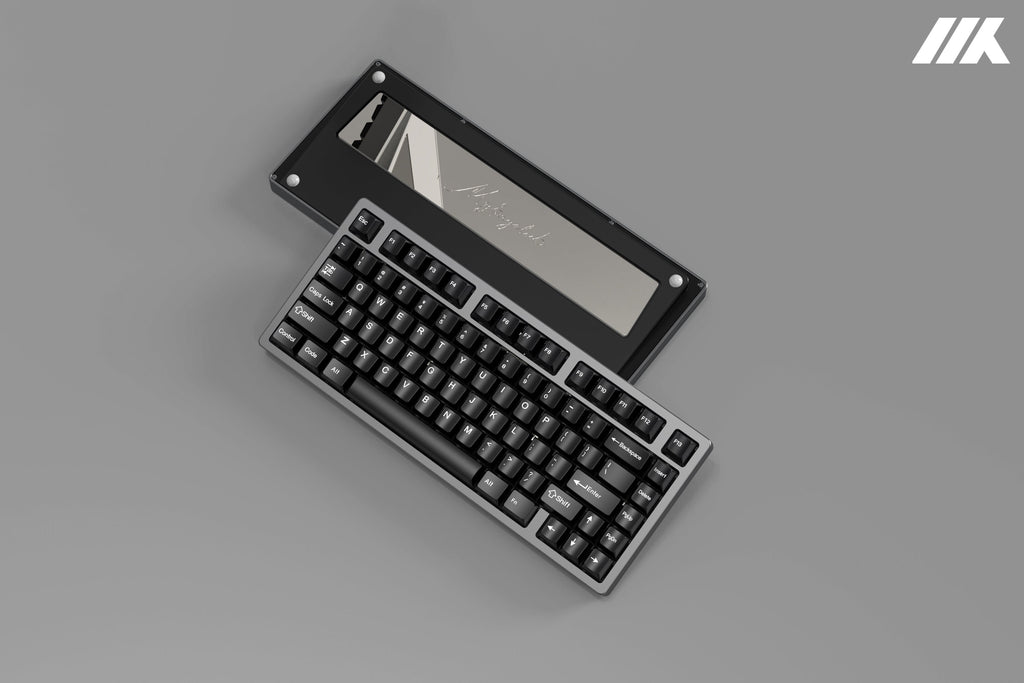

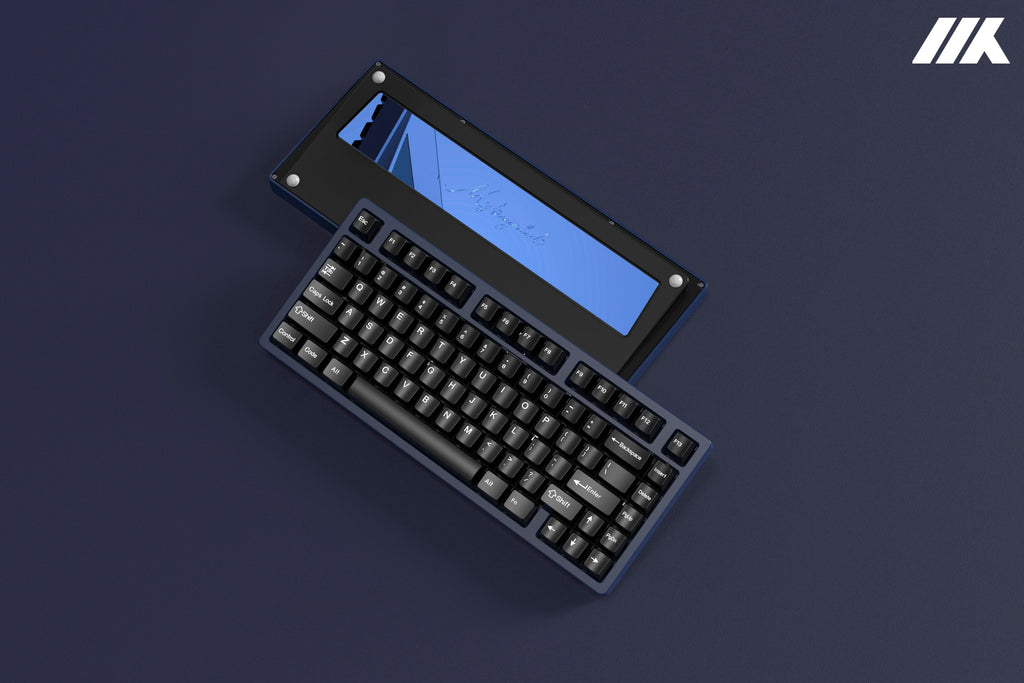

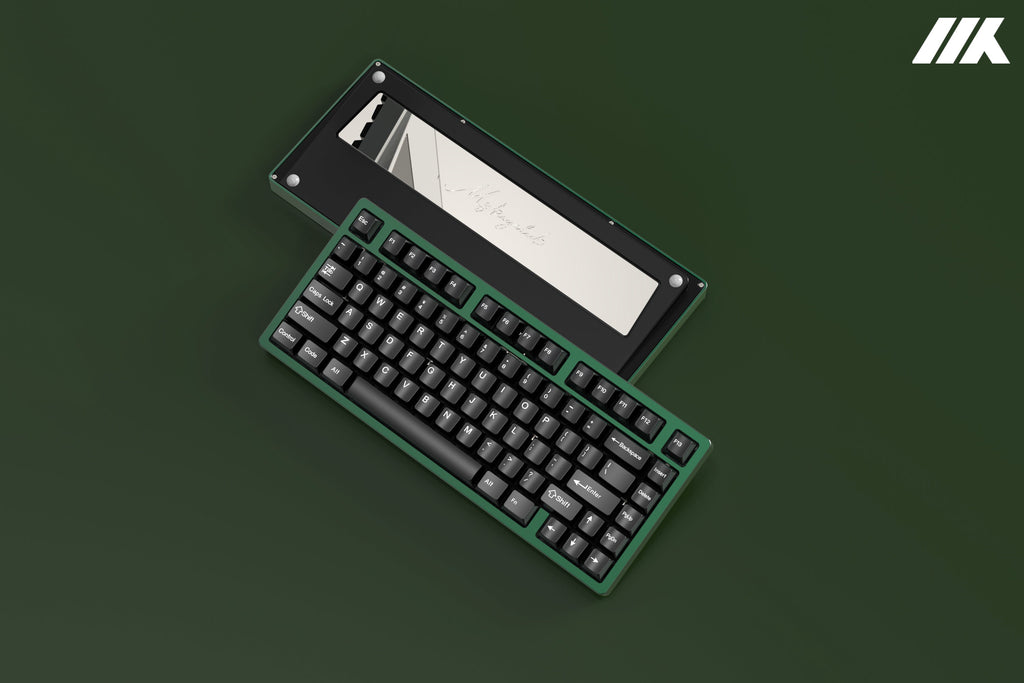

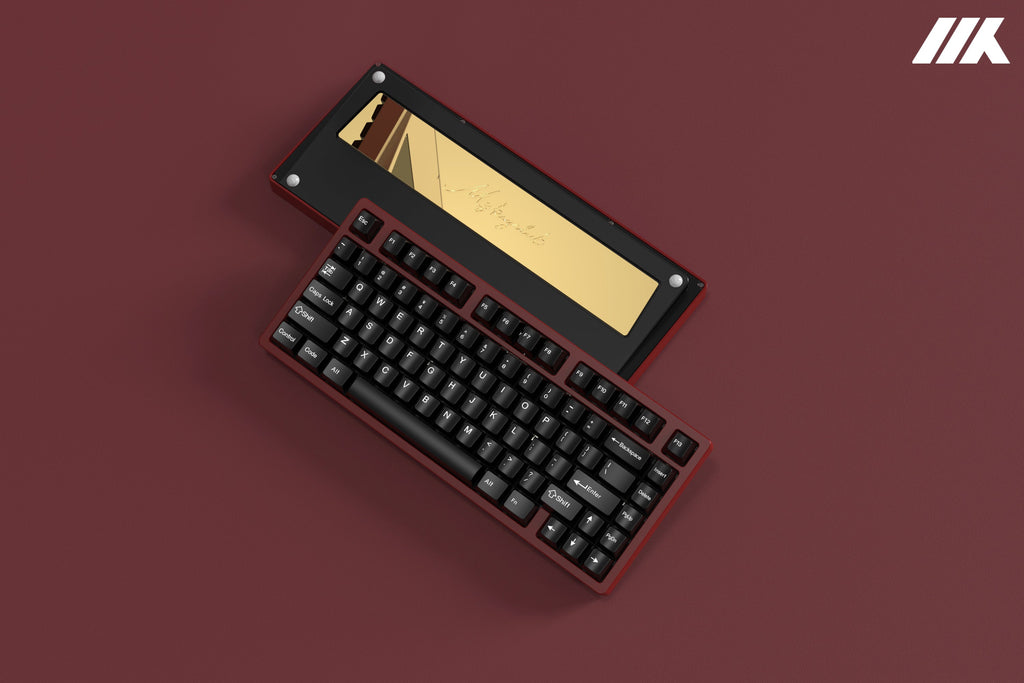

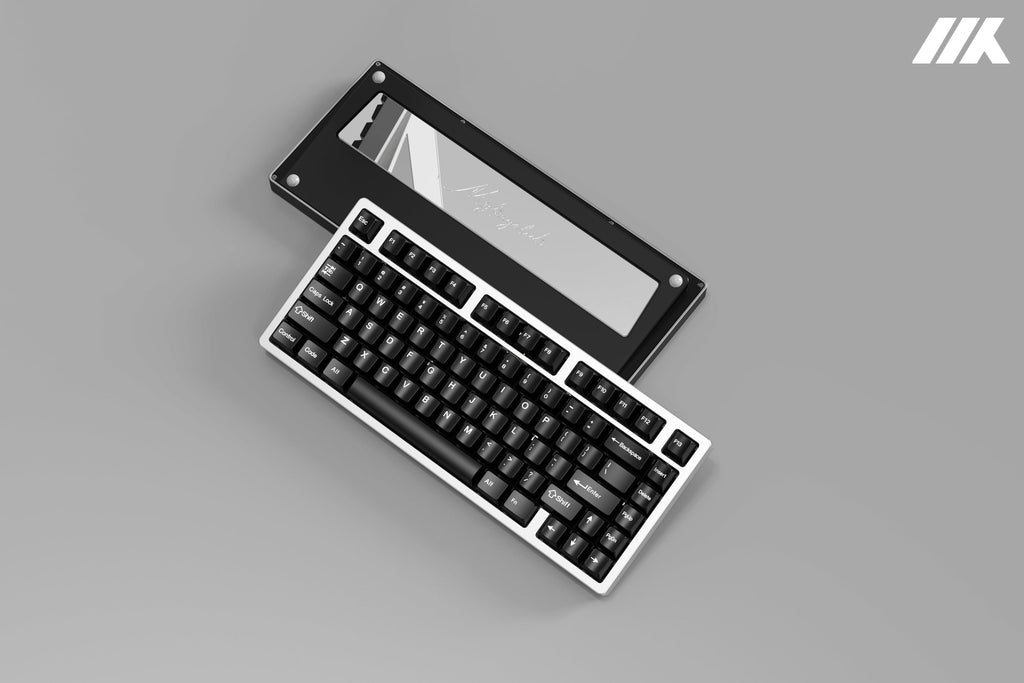

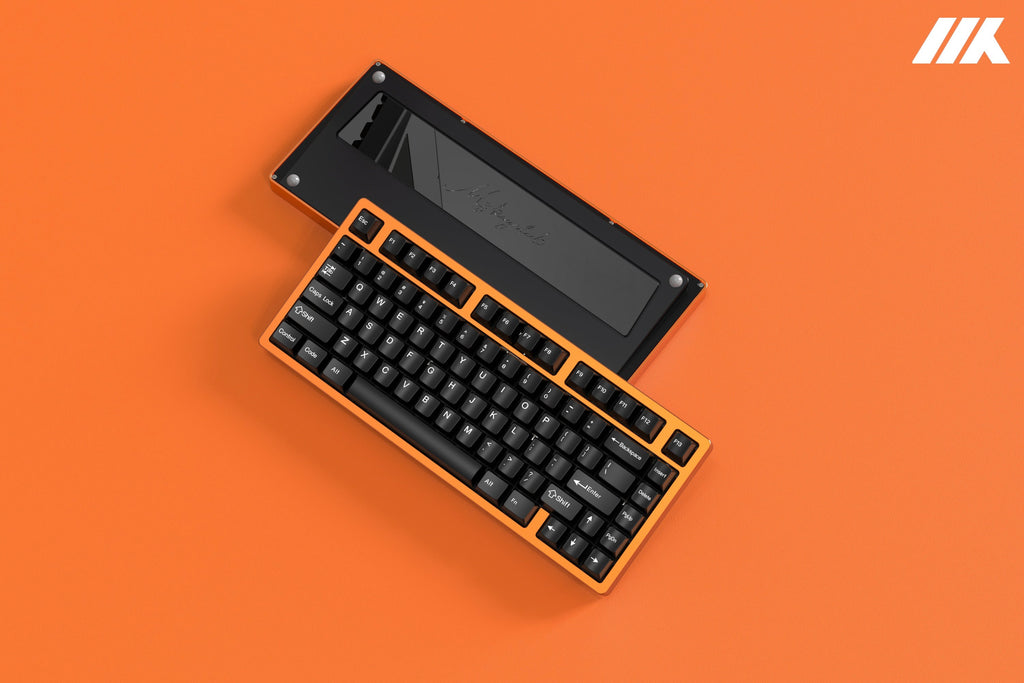

      • 7 Color Combose Case: E-White&Black, Orange&Black, Grey&Black, Silver&Black, Wine Red&Black, Deep Blue&Black, Green&Black

      WEIGHT OPTIONS:


      • 4 Alu Weight: Gold/Silver/Black/Rose Gold
      • 6 PVD SS Weight: Gold/Silver/Black/Blue/Rose Gold/Chroma

      PCB OPTIONS:

      • Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )
      • Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
      • Wired Solder PCB(1.6mm, Non-Flex Cut, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
      • Wired Per-Key RGB Hotswap PCB (Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
      • Tri-mode ANSI+ISO Hotswap PCB (1.2mm, Non-Flex Cut, No Per-key RGB, support Mykeyclub Software）
      Noted: The Tri-mode technical support is provided by IRISLab. Appreciate their support and help.

      PLATE OPTIONS:


      • Plateless
      • Flex Cut Plates: FR4, ALU, Brass (Add-on only)
      • Non-flex Cut Plates: PC, POM
      • Alu and FR4 Half-plate (Add-on only)
      Noted: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB because the Brass and ALU plate will have a little affection for connectivity.

      WHAT'S INCLUDED IN MKC75?


      • Full CNC Aluminum Top case *1
      • Full CNC Aluminum Bottom case *1
      • Weight（Anodized Alu Weight or Stainless steel PVD Weight） *1
      • Internal Alu Weight (Only for the Tri-mode Version Case) *1
      • PCB *1
      • Plateless or Plate *1
      • IXPE Foam *1
      • Poron Case Foam *1
      • Poron Plate Foam *1
      • Type-C Daughterboard with JST Cable *1
      • PCB GAS Silicone Column *12
      • Plate GAS Silicone Sock *18
      • Top mount screw and spacer *12
      • PCB stabilizers o-ring *12
      • Footpad *6
      • Poron case strip *6
      • 1.6mm hex key *1

      Gift(will not send make-up or replacements)


      • 1 Pack of Extra Screw:
        • M2x3mm cylindrical head screw *2
        • M2x8mm cylindrical head screw *2
        • M3x12mm countersunk screw *2
        • M3x6mm countersunk screw *2
      • 2200mha battery (Only for the Tri-mode Version Case) *2
      • Silicone pad of battery compartment (Only for the Tri-mode Version Case) *2


      Timing and shipping


      GB Time: August 5 - August 31

      Production Time: Q4

      ETA for delivery: Q4

      Timely updates will be communicated via the Discord channel accessible at this link: MKC75
