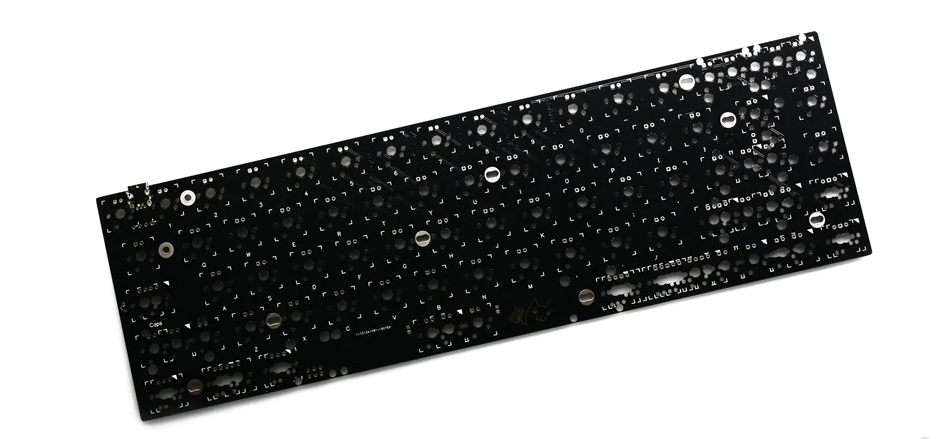

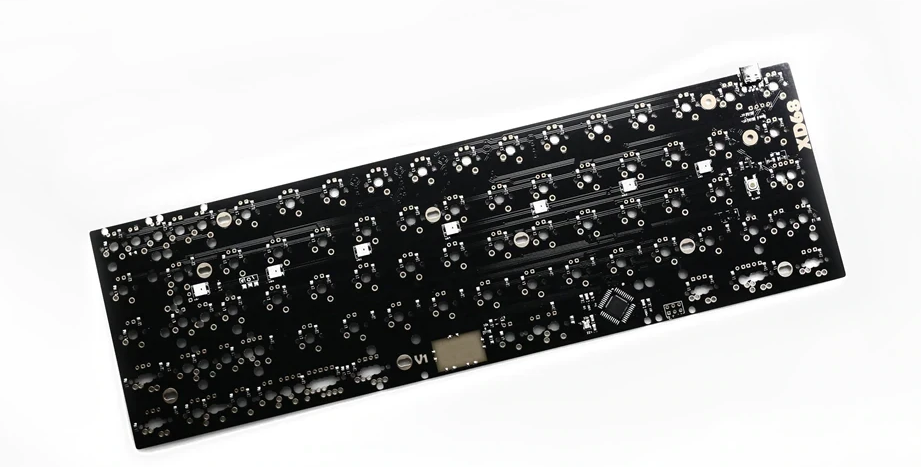

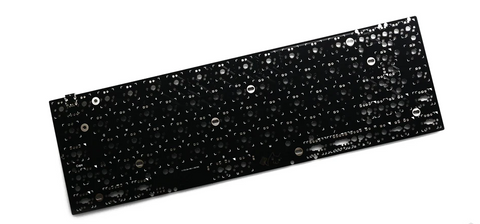

XD68 PCB 65%

NOTE - Before soldering the switches, test all keys (use tweezers or wire) and LEDs to make sure all functions are working properly. BEFORE soldering, if the PCB has any problems, we can send a new one back. AFTER soldering, we are sorry that we cannot make any replacements.

If you order this product, we assume that you agree with the above terms.

Specifications

• 65% PCB
• MX Stem Support
• It supports 3-pin or 5-pin MX or clone switch
• Using 32U4 Core
• Compatible with KLE custom key
• Support offline flashing tool TKG-TOOLS and the online flashing tool TKG
• Interface ICSP standard
• Compatible expansion port REVB and REVQE
• RGB LED

Official reflash guide:

https://drive.google.com/drive/folders/1HTn3hBlp-A1l6ZkE1g96nn0U6oZ4kmzo?usp=sharing
