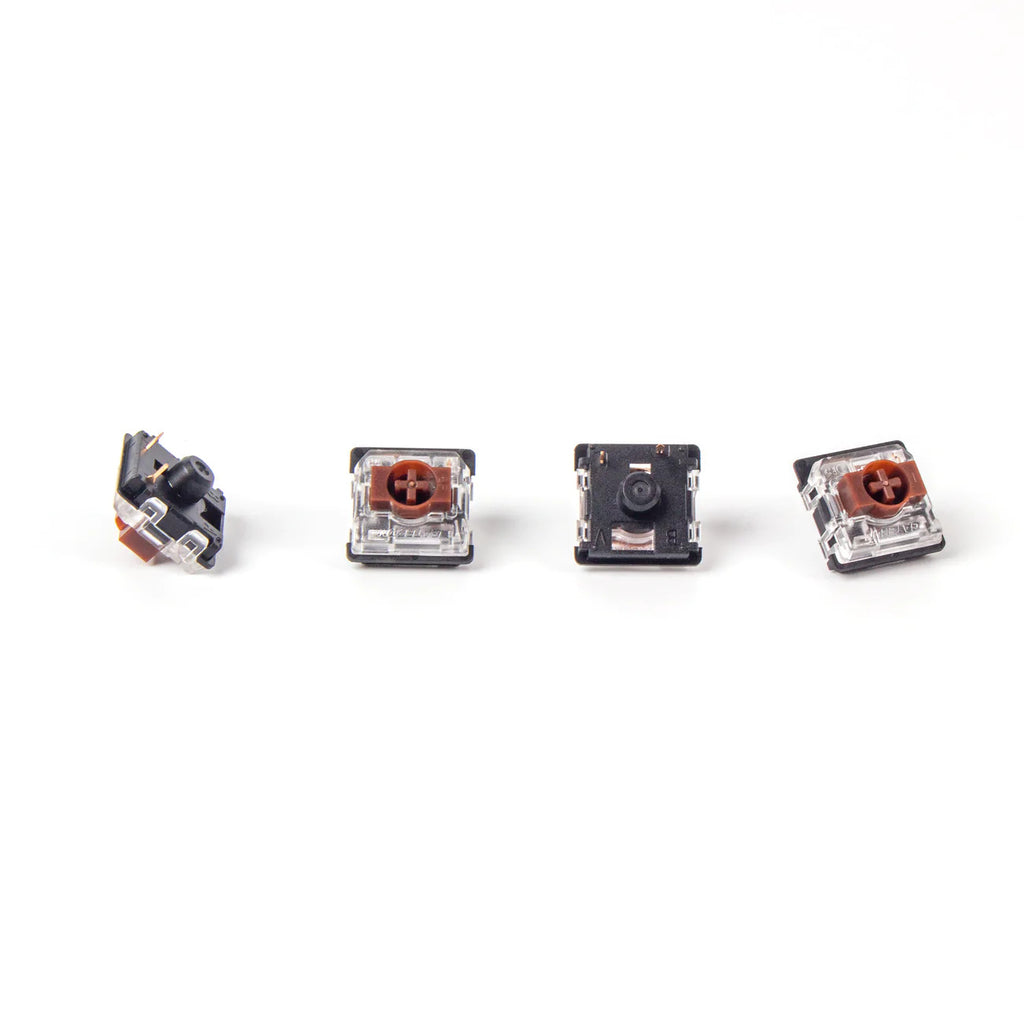

Gateron Low Profile Switches

Gateron KS-33 Low Profile 2.0 （White Bottom Housing）Switch Feature

• For Ultra-Thin keyboard
• Similar normal switch type feeling with low profile switch unlocks the light source code with simple thinking
• Normal switch type feeling in low profile size good for gaming too

Tip: The KS-33 low profile switch is applied for the keyboard fit GATERON low profile switch, not for other low profile switch replacements.
The comparison chart is as follows.
The KS-33 Low Profile switch is 12.2 mm in height and the KS-27 Low Profile switch at 11.75 mm.

Product Detail:

• Fix location in side pole shorter 0.3cm.
• Middle pole extends 0.3cm
• Resolve the original issue that the touch to bottom early.

	Type	Operating Force	Pre-Travel	Total Travel	Spring	Pins
	Linear	50±15 gf	1.2±0.3 mm	3.2±0.2 mm	13.5 mm	3-Pin
	Linear	50±15 gf	1.7±0.4 mm	3.2±0.2 mm	13.5 mm	3-Pin
	Tactile	55±15 gf	1.7±0.4 mm	3.2±0.2 mm	13.5 mm	3-Pin
	Clicky	65±15 gf	1.7±0.4 mm	3.2±0.2 mm	11.5 mm	3-Pin
